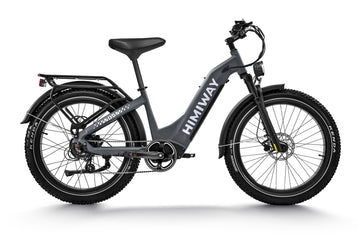

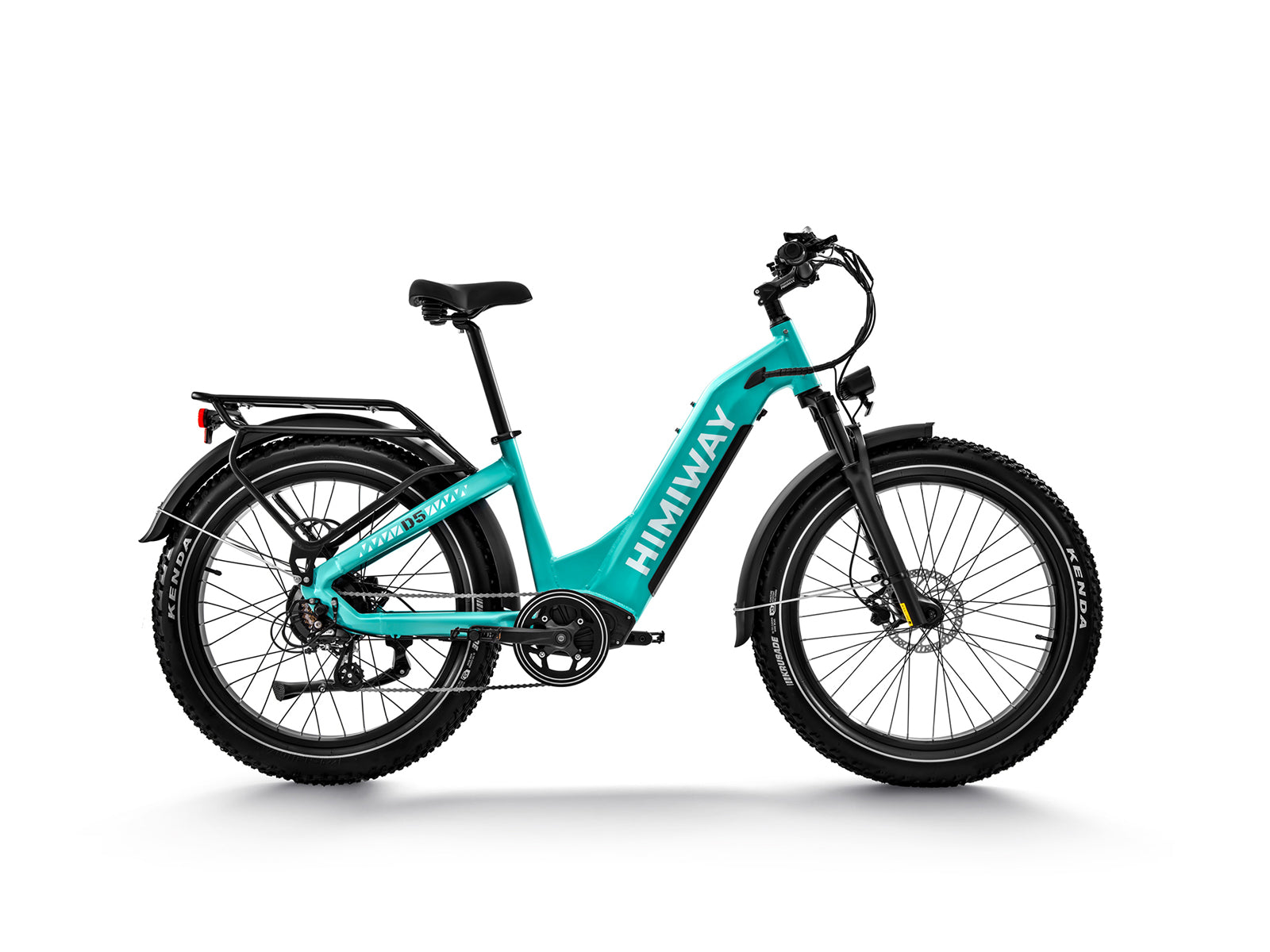

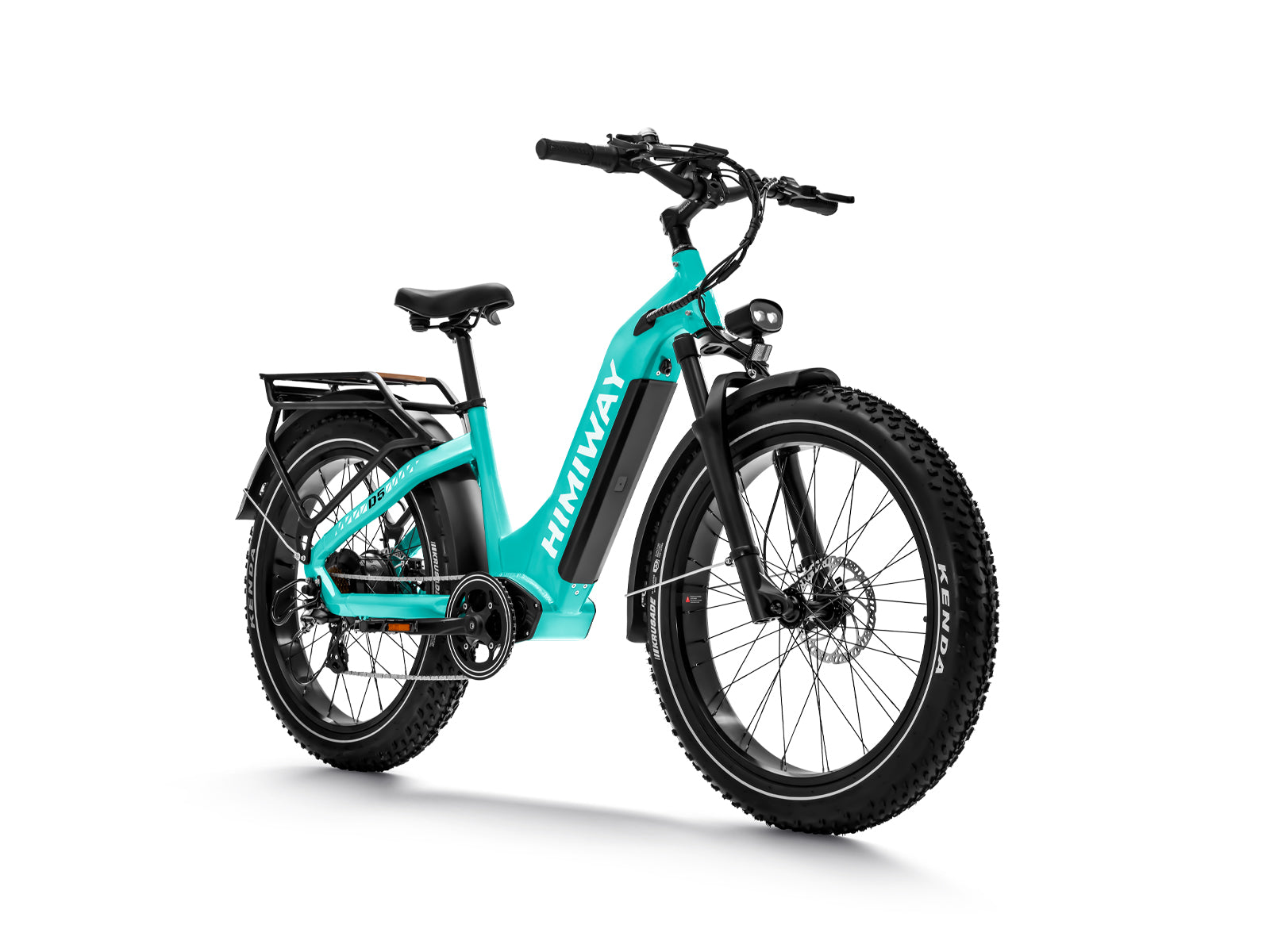

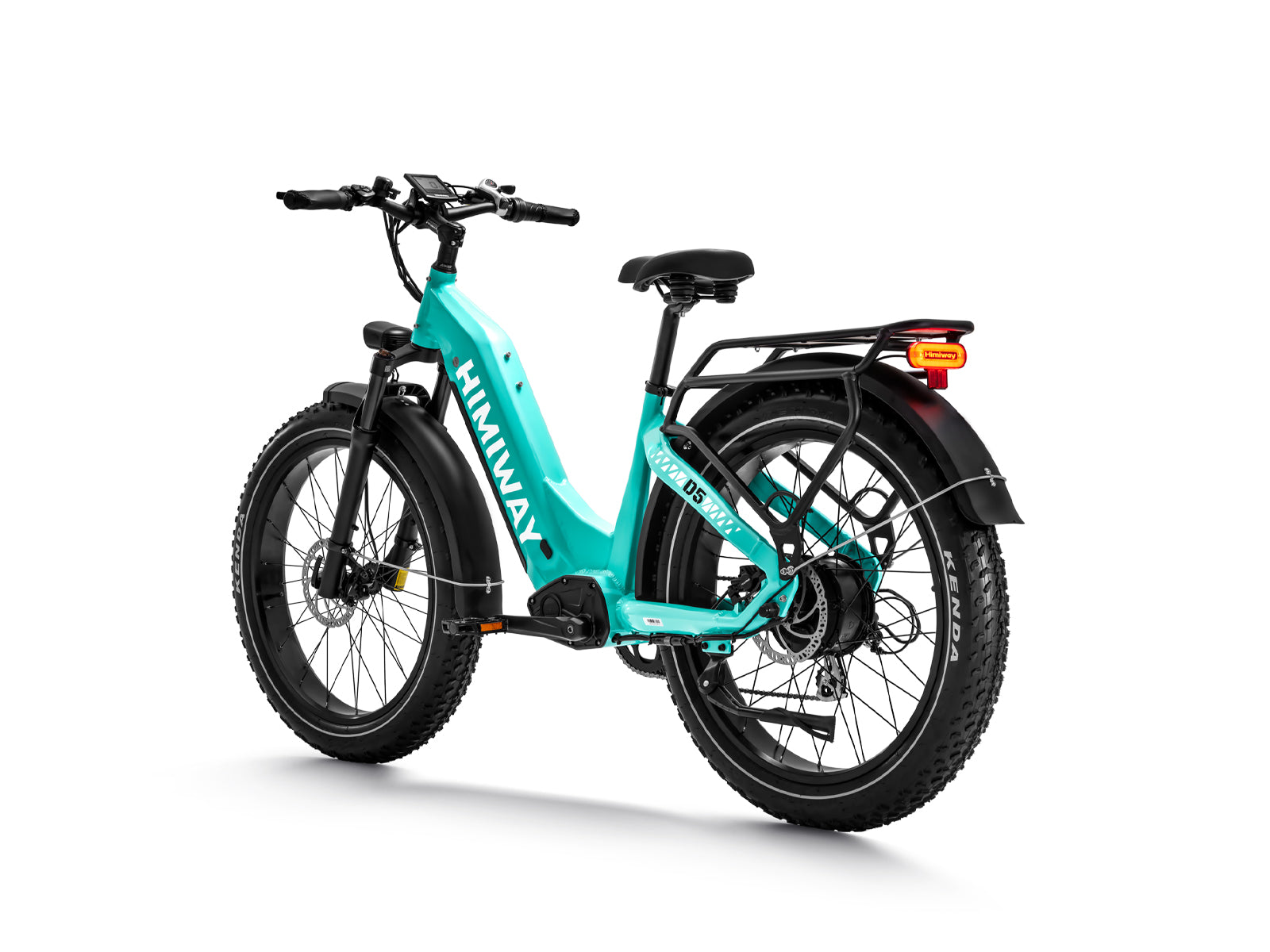

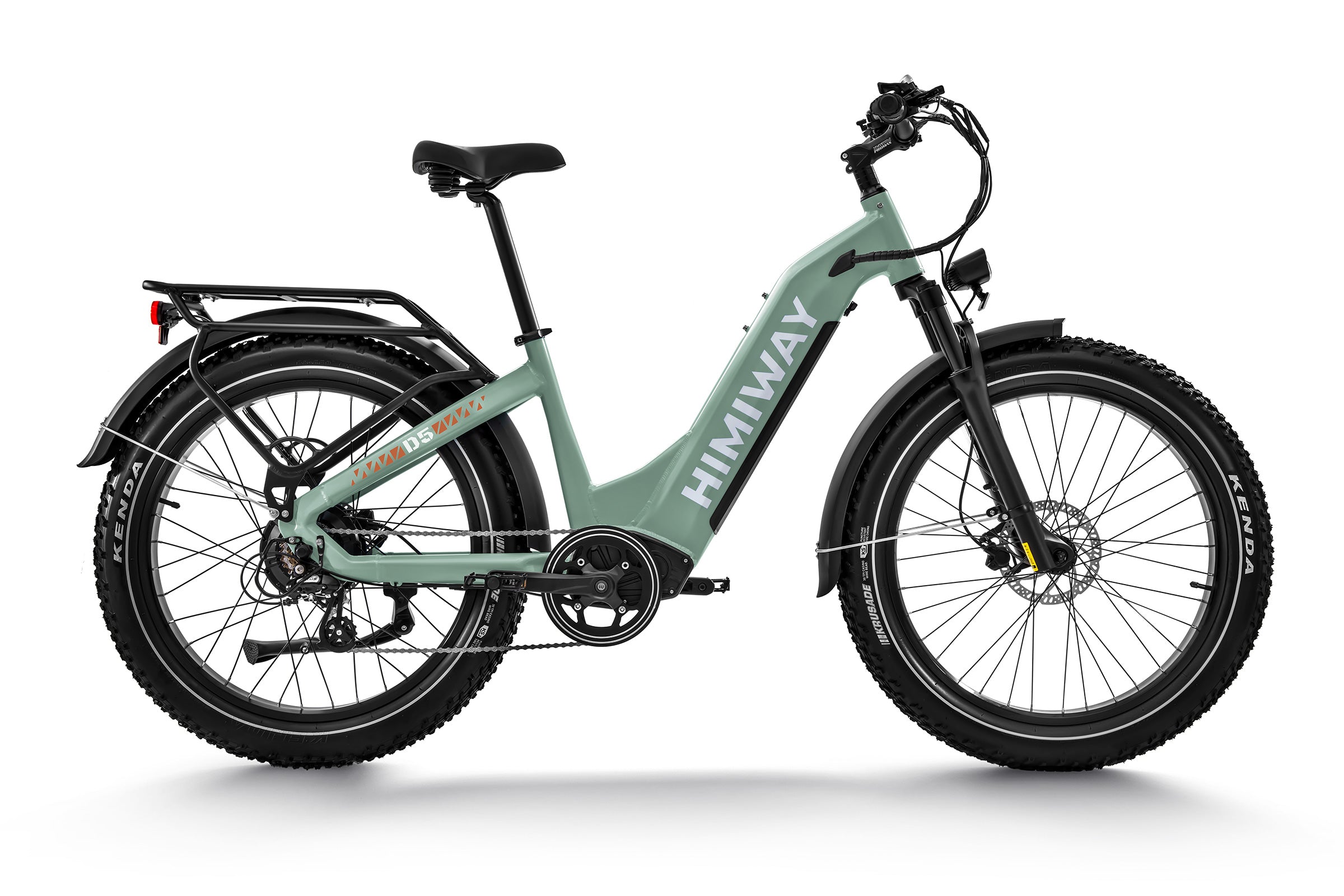

Himiway D5 ST (Zebra ST) | Premium All-terrain Electric Fat Bike
D5 ST(Zebra)
Step-thru-
Shipping Time:Within 2 Business Days
-
Torque
Sensor
-
960 Wh
Samsung/LG Battery
-
80 Miles
Per Charge (maximum) The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
-
250 W
Geared Hub Motor
-
25 Km/h
Top Speed Reach speeds of up to 25 km/h.
-
400 lb.
Payload Capacity
-
26x4 "
Kenda Fat Tire
-
Hydraulic
Brakes
- 1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
- 2 - Reach speeds of up to 25 km/h.
Long Range Expert
960Wh High-performance Lithium-ion Battery
It combines the new Samsung/LG battery technology with a 5000mAh single cell capacity in a smaller size but with larger diversity. Compared with 3500mAh cells made of nickel, cobalt, and manganese, this 960Wh battery efficiently improves the range, stability, and safety of Himiway bikes. A single charge can last up to 60 miles on pure electric power and 80+ miles with pedal assist. The battery will maintain 80% capacity after 1000 charges.
-
80 Miles
Per Charge (maximum) The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
-
8.8 lb.
Battery Weight
- 1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
Safeguarding your ride with intelligent battery protection for enhanced longevity and performance.
-
Short Circuit Prevention
-
Cell Balancing
-
Temperature Control
-
Over-current Prevention
-
Wiring Protection
-
Over-charging Over-discharging
-
Over-load Prevention
-
Reverse Prevention
Updated 250W Motor
Fast Acceleration & Good Gradeability & Longer Lifespan
250W Brushless Geared Hub Motor Use the latest updated inner ring specialized in high temperature resistance and better heat dissipation, which can reduce the motor magnets’ attenuation speed to guarantee a longer life expectancy.
-
250 W
Geared Hub Motor
-
86 Nm
Max Torque
You can think of the FOC as the brain controlling the motor in real-time. It recognizes your riding conditions and instantly calls on the motor for optimal performance. The FOC measures scooter diagnostics, which you as a driver cannot see, and then decides how to respond to your driving inputs.

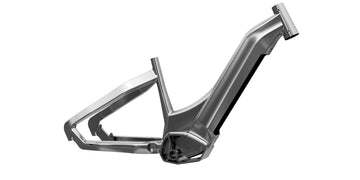

Gain Extra Payload With 2X Thicker Frame
With adjustable saddle and strong frame structure, it can meet the needs of riders of different height and weight.
The e-bike features a removable built-in battery that is smartly designed to withstand dust, dirt, rain, and other environmental hazards. This ensures a longer battery life and a safer ride. The e-bike also looks more fashionable and modern, with a sleek and integrated battery that blends in with the frame. You don't have to worry about thieves stealing your battery, as it is securely locked inside the e-bike.
The Kenda All-terrain Fat Tire
26"x4" Kenda K-shield fat tires provide strong grip and traction on rugged roads. Even on the most challenging terrains and weather conditions, these fat tires can guarantee your safety and offer you an easy and smooth riding experience.
-
Gravel Road
-
Sandy Ground
-
Mountain
-
Brick Road
-
Wetland
-
Snowy Road
clear at a glance
Experience Natural Handling and Comfortable Human-vehicle Interaction
The Backlit LCD display provides information on speed, mileage, power, etc.
-
USB Charging
-
Security Code
-
State of Riding
-
Fault Warning
-
Cycling Data
-
Function Set
-
Switch
-
Info
-
Light ON/OFF
-
Half twist throttle
-
Shimano gearbox
-
Bell
The advantages of a Torque Sensor
This can feel much more natural than a bike with a cadence sensor, as it replicates the feeling of riding that many of us are used to and simply amplifies your efforts. Pedal hard and you’ll get maximum assist. Back off your intensity, and the assistance system will do likewise. Torque sensors can also be more efficient than cadence sensors, as the power delivered is based on the actual effort you put into the pedals and updates in real time. This efficiency can often mean you can eke extra miles out of a battery charge.
Hydraulic Brakes
Hydraulic brakes provide superior braking performance and durability. With proper maintenance, there won't be a decline in braking power for 5 years.
Elegance is in the Details
Designed to perfectly balance outstanding performance ultimate comfort, and timeless style. Explore as never before with D5 ST

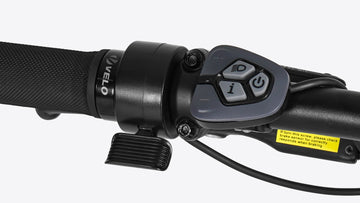

Thumb Throttle
Torque Sensor
Customized Integrated Brake Light
Selle Royal Saddle
48V 500LM Luminosity Spotlight
Thumb Throttle
Integrated Brake Light
Shimano 7 Speed Gear Shift System
Front Fork Suspension
Rear Rack
Reflective Sidewall Stripe
48V Luminosity Spotlight
Selle Royal Saddle
Half Twist Throttle
180mm Hydraulic Disc Brakes
Technical Specifications
Geometry
-
A – total length78.7‘’ (199.9CM)
-
B – handlebar height47‘’ (119.3CM)
-
C – handlebar length28‘’ (70CM)
-
D – wheelbase49.2‘’ (124.9CM)
-
E – wheel diameter28.7‘’ (72.9CM)
-
F – minimum seat height20.9‘’ (53CM)
-
G – maximum seat height31.4‘’ (79.7CM)
-
H – chain stay length19‘’ (48.2CM)
-
I – frame stack24.6‘’ (62.4CM)
-
J – frame reach17.8‘’ (45.2CM)
-
K – effective top tube length24.4‘’ (61.9CM)
-
L – head tube length5.5‘’ (13.9CM)
-
M – head angle65°
-
N – standover height22.4‘’ (56.9CM)
Specification
-
Frame6061 Aluminum
-
HeadsetNeco H156EM 28.6*44-56*30
-
ForkTRAMA 26"FAT34-26-HLO 95mm travel 9*135mm quick release
-
Front wheelRim: MD-147 26*4.0"*36H*12G A/V
Spoke: 12G 255/256L stainless (304M)
Hub: MB015-92 M9*12G*135*145W -
Rear wheelRim: MD-147 26*4.0"*36H*12G A/V Spoke: 12G 214L stainless (304M) Hub: 48v 250w Himiway hub motor
-
TiresKenda 26*4.0
-
Battery48V 20Ah
-
Motor250W brushless gear motor
-
DisplayLCD display
-
ThrottleThumb throttle
-
SensorsTorque sensor丨speed sensor丨brake sensor
-
CranksetCrankarm: Prowheel EB-01-242A-S1 170mm
Chain ring: 44T BCD104 -
FreewheelShimano MF-TZ500-7 14-28T
-
ChainKMC Z8.3 EPT 120L
-
GroupsetShimano altus M310 7 speed
-
Front brakeTektro hydraulic brake
-
Rear brakeTektro hydraulic brake
-
RotorsTektro TR180-52 F:180mm R:180mm
Components
-
StemPromax MA-400 28.6*90E*10D*41H
-
HandlebarPromax HB-3188 22.2*31.8*700mm
-
SeatpostHimiway Seatpost
-
SaddleHimiway Saddle
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range60-80 miles (96-128 KM)
-
Controller48V/22A
-
Charger3.0 A smart charger
-
Rider height5'1" ~ 6'5" (154~195CM)
-
Weight79 lb.
-
Max. system weight400 lb.
Geometry
-
A – total length78.7‘’ (199.9CM)
-
B – handlebar height47‘’ (119.3CM)
-
C – handlebar length28‘’ (70CM)
-
D – wheelbase49.2‘’ (124.9CM)
-
E – wheel diameter28.7‘’ (72.9CM)
-
F – minimum seat height20.9‘’ (53CM)
-
G – maximum seat height31.4‘’ (79.7CM)
-
H – chain stay length19‘’ (48.2CM)
-
I – frame stack24.6‘’ (62.4CM)
-
J – frame reach17.8‘’ (45.2CM)
-
K – effective top tube length24.4‘’ (61.9CM)
-
L – head tube length5.5‘’ (13.9CM)
-
M – head angle65°
-
N – standover height22.4‘’ (56.9CM)
Specification
-
Frame6061 Aluminum
-
HeadsetNeco H156EM 28.6*44-56*30
-
ForkTRAMA 26" FAT34-26-HLO 95mm travel 9*135mm quick release
-
Front wheelRim: MD-147 26*4.0"*36H*12G A/V
Spoke: 12G 255/256L stainless (304M)
Hub: MB015-92 M9*12G*135*145W -
Rear wheelRim: MD-147 26*4.0"*36H*12G A/V Spoke: 12G 214L stainless (304M) Hub: 48v 250w Himiway hub motor
-
TiresKenda 26*4.0
-
Battery48V 20Ah
-
Motor250W brushless gear motor
-
DisplayLCD display
-
ThrottleHalf twist throttle
-
SensorsCadence sensor丨speed sensor丨brake sensor
-
CranksetCrank arm: 4-jaw L/R forged alloy 170mm | Chain ring: 46T
-
FreewheelShimano MF-TZ500-7 14-28T
-
ChainKMC Z8.3 EPT 120L
-
GroupsetShimano altus M310 7 speed
-
Front brakeTektro hydraulic brake
-
Rear brakeTektro hydraulic brake
-
RotorsTektro TR180-24 F:180mm R:180mm
Components
-
StemPromax MA-400 28.6*90*31.8mm
-
HandlebarPromax HB-3188 22.2*31.8*700mm
-
SeatpostSP-2003 30.9*350mm
-
SaddleSelle Royal A054UE
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range60-80 miles (96-128 KM)
-
Controller48V/22A
-
Charger3.0 A smart charger
-
Rider height5'1" ~ 6'5" (154~195CM)
-
Weight79 lb.
-
Max. system weight400 lb.
