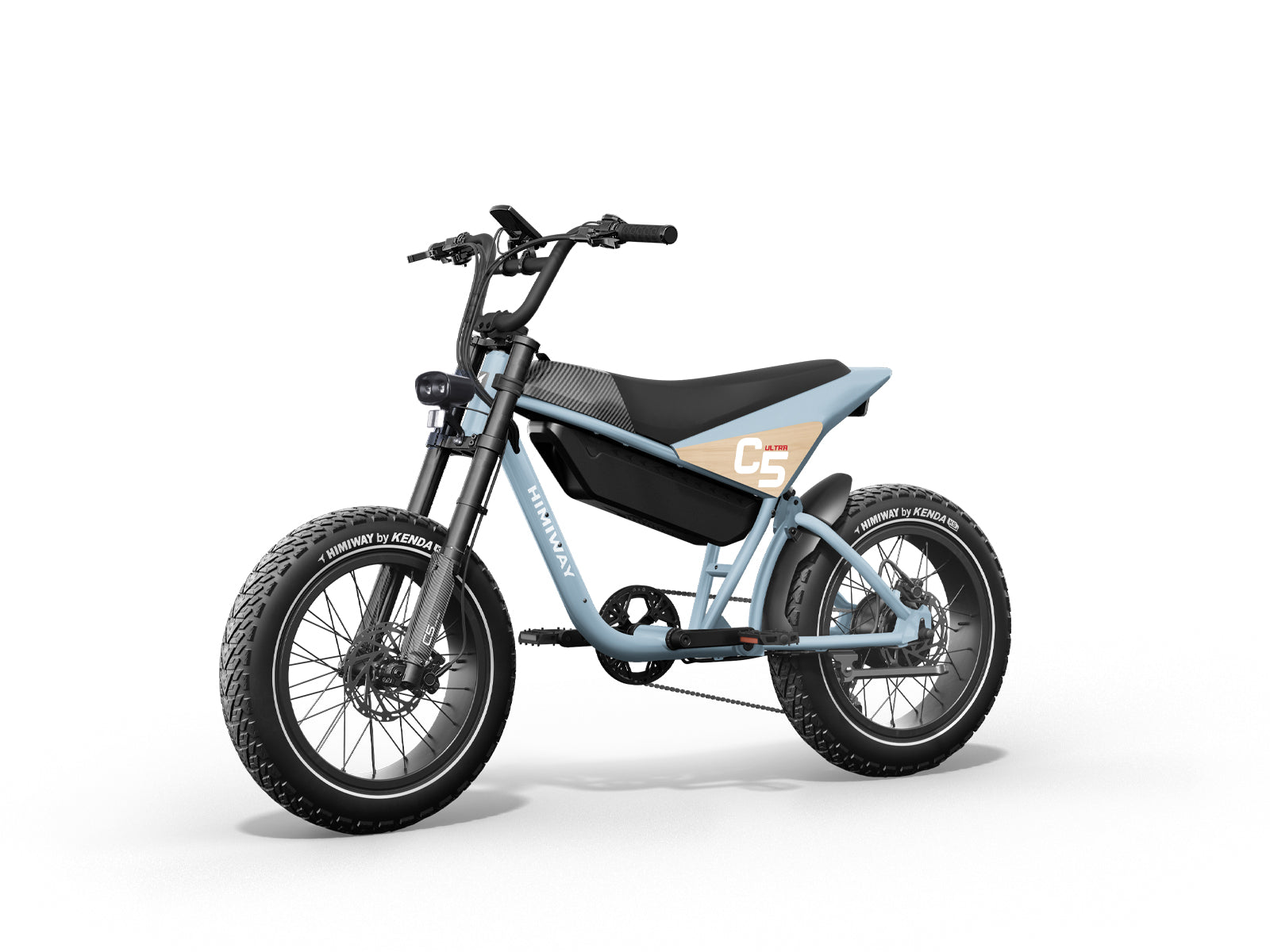

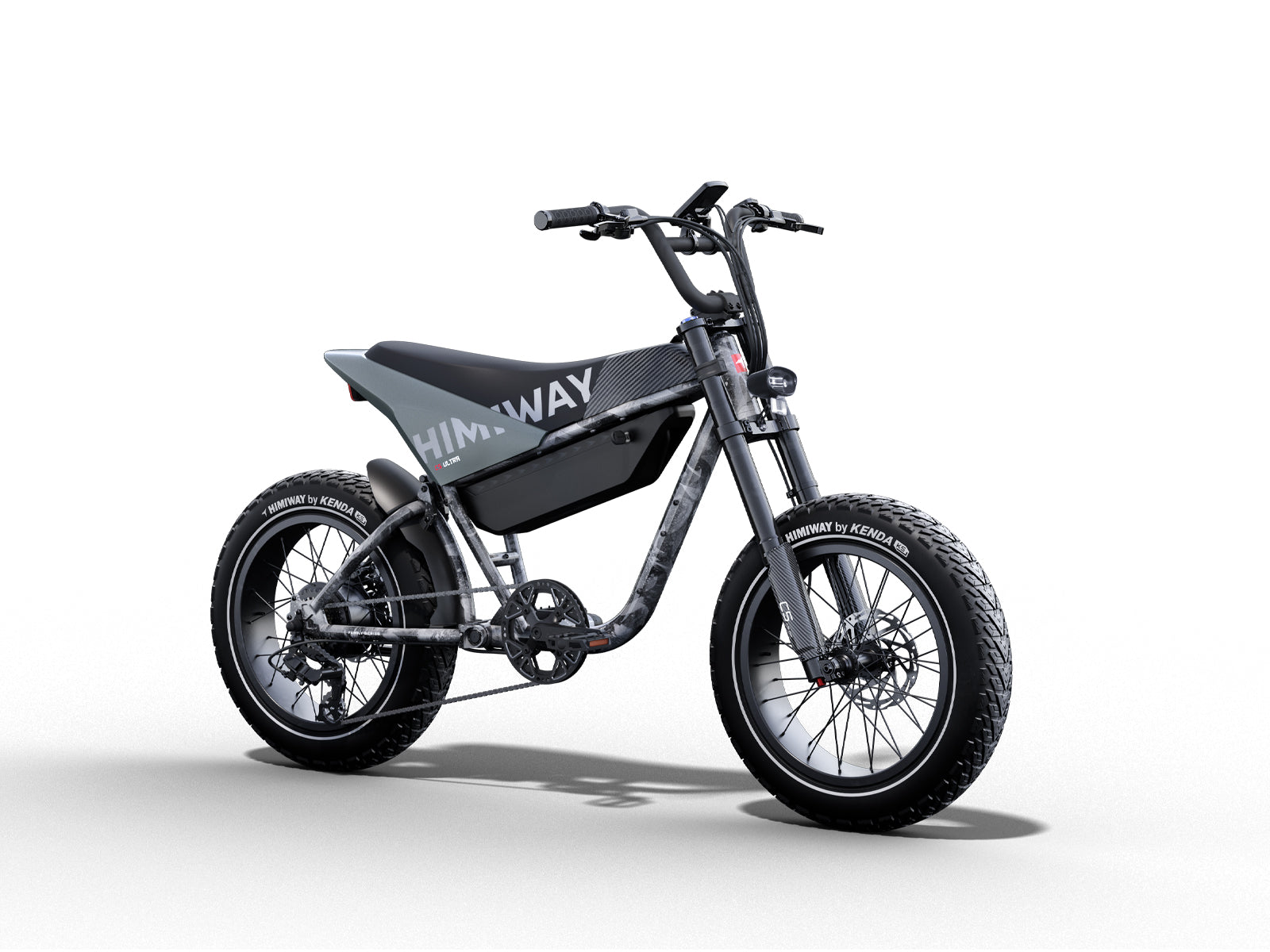

Himiway C5 | Electric Motorbike
-
Shipping Time: Ships Within 2 Business Days
-
25 Km/h
Top Speed Reach speeds of up to 25 km/h.
-
80 Miles
Per Charge (maximum) The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
-
250 W
Geared Hub Motor
-
Hydraulic
Brakes
-
Torque
Sensor
-
960 Wh
Samsung/LG Battery
-
7-Speed
Shimano Derailleur
-
330 lbs
Payload Capacity
- 1 - Reach speeds of up to 25 km/h.
- 2 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
Experience tailored comfort with our extended saddle, designed to accommodate riders of all heights for the perfect posture. Enjoy a flexible, cozy ride on every journey.
The C5 sets the standard for electric motorbike with its exceptionally sturdy frame.
960Wh High-Efficiency Battery
Equipped with a powerful LG 48V 20Ah battery, the Himiway C5 delivers an impressive 80-mile range per charge. Experience the thrill of the ride, conquer city streets, and embrace endless exploration.
Featuring a Breathing Light design, the Himiway C5's ambient lights gently pulse, capturing the rhythm of the city and setting the trend for urban night rides.
250W Brushless Geared Hub Motor
Experience superior performance with the Himiway C5's 250W motor, delivering an impressive 86Nm of torque for effortless climbs up 15° inclines and smooth rides against the wind.
-
250W
Motor Power -
86Nm
Max Motor Torque
Live Electric, Ride Bold.
The Himiway X Kenda Tire
Experience superior stability and grip with our 20"x4" Kenda K-shield fat tires, designed for peak performance on any surface and in any weather, ensuring a safe and seamless ride.

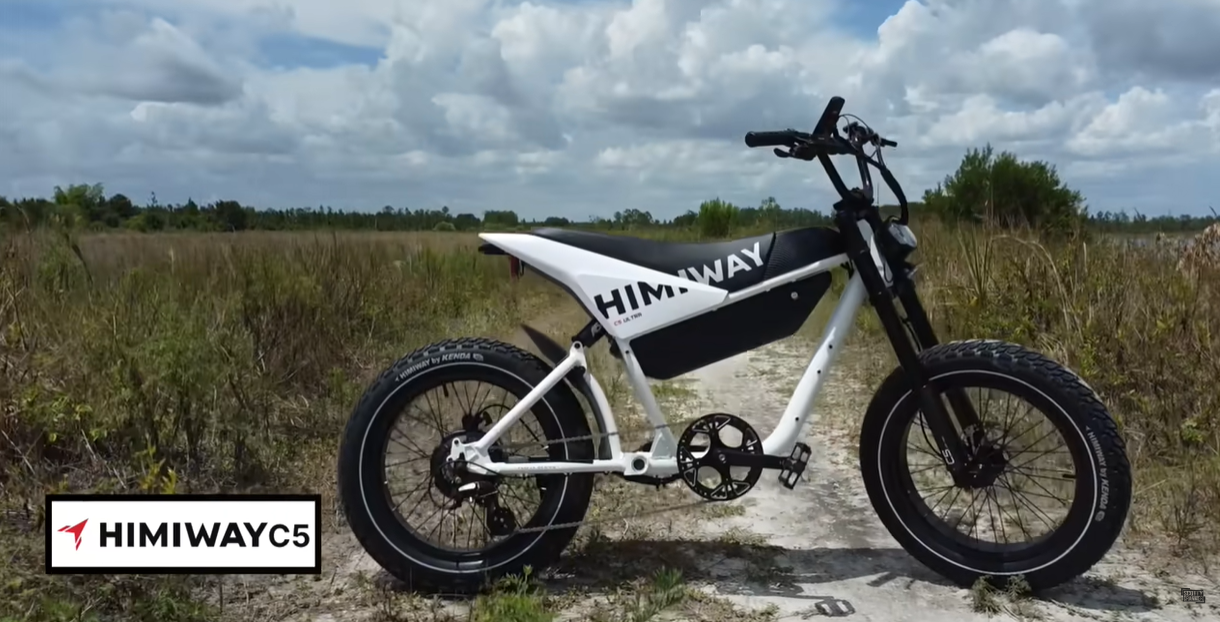

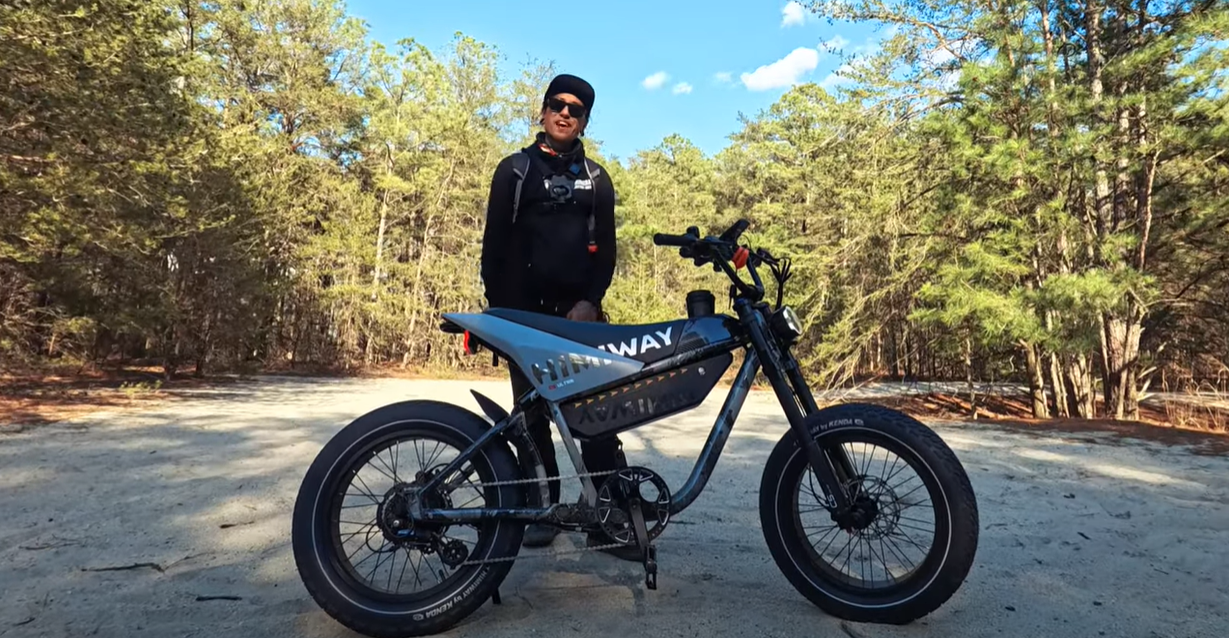

Effortlessly glide over rocks, sand, or gravel. The C5 ensures stability on any surface, from beaches to grasslands. No terrain is too tough.
Enjoy Effortless Control and Seamless Riding Comfort
The Backlit LCD display offers essential ride data, including speed, distance, and battery level, at a quick glance
Upgraded with larger buttons, the Control Handle offers enhanced comfort and ease of use
Double the Frame Thickness, Double the Payload Capacity
Crafted from 6061 aluminum alloy, our frames combine lightweight resilience with exceptional durability. Resistant to corrosion, they guarantee enduring performance across any terrain
-
330 lbs
Payload Capacity
-
88 lb.
Weight (with battery)
-

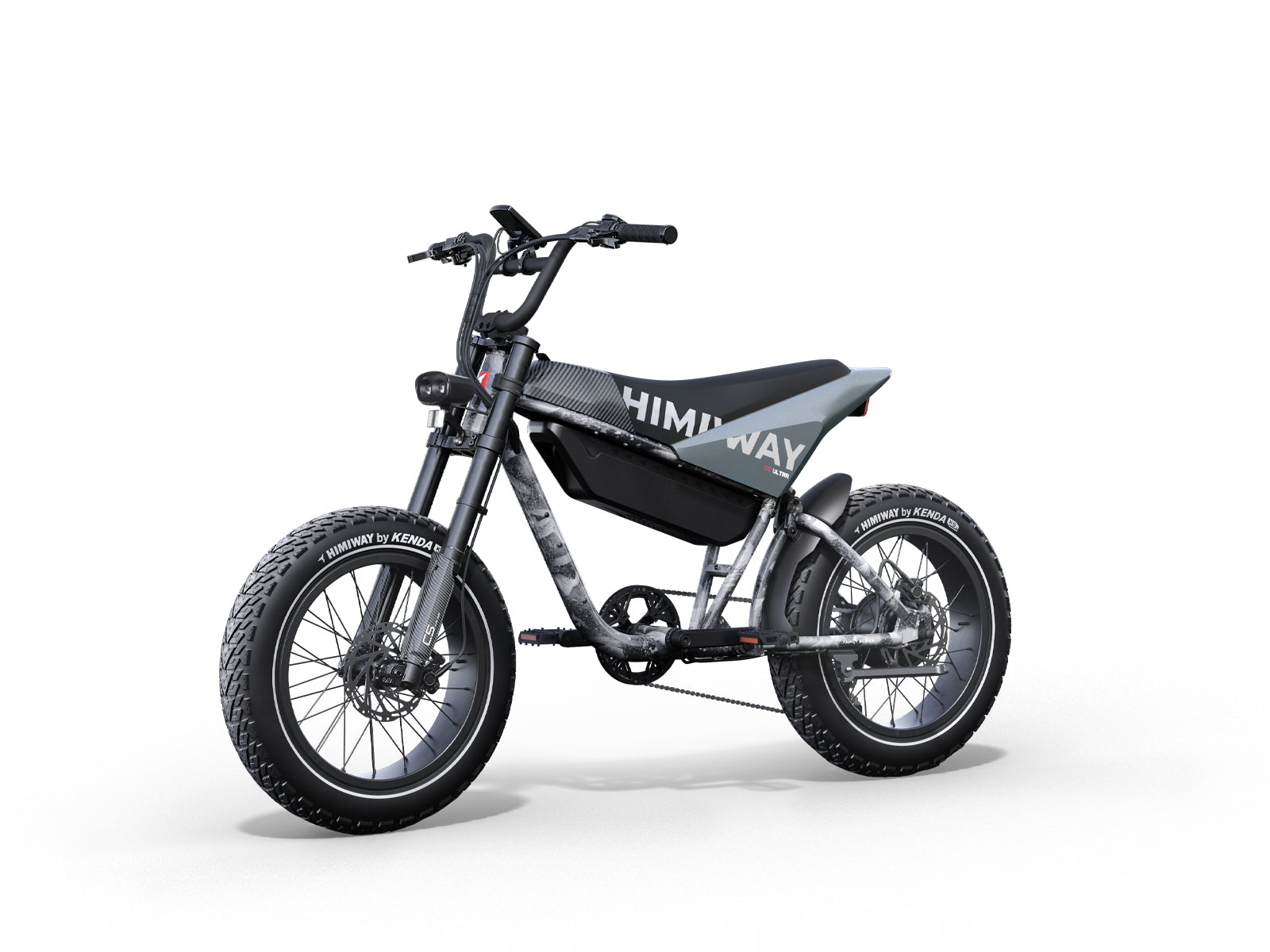

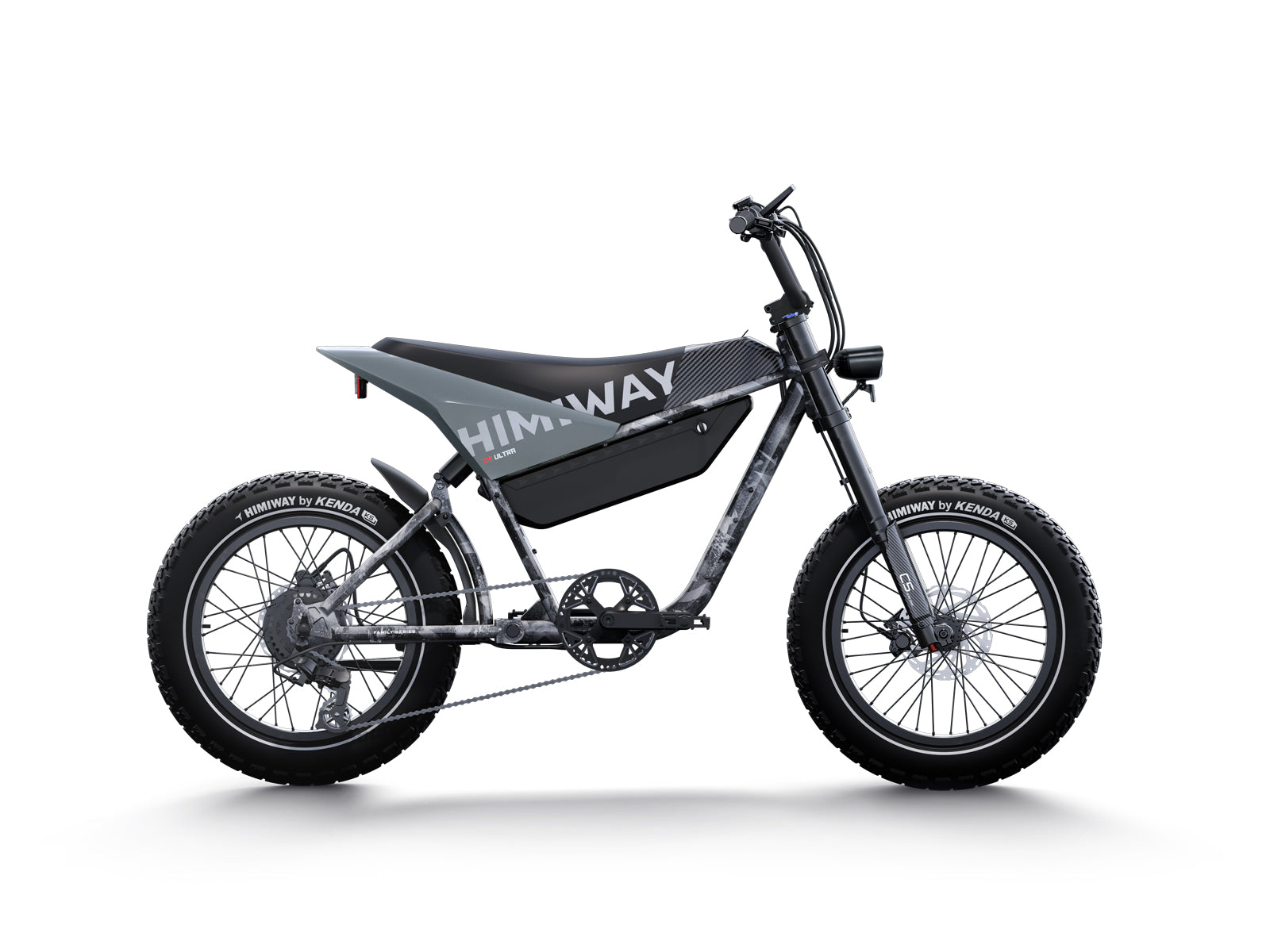

1 Only
Each Ink Frame Unique
Enjoy a bump-free ride with the C5's full suspension, boasting a 140mm inverted front fork and a 47mm adjustable rear shock, ensuring comfort on rough terrains.
Next Generation
Electric Motorbike
48V High-brightness Front Light
Enhances visibility and safety, illuminating the path ahead to better reveal unforeseen road conditions
Auto-Illuminating Brake Light
Frame-integrated taillights illuminate automatically upon braking, enhancing safety and visibility for night riding.
Coffee Cup Holder
Convenience meets style for your on-the-go refreshment needs.
Torque Sensor
Provides real-time electric assist adjustment for efficient, smooth cycling, optimizing energy use and improving safety and stability.
Refined in Every Detail
Engineered for peak performance, supreme comfort, and classic style, the C5 redefines urban style.
Integrated Tail Light
Thumb Throttle
Hydraulic Disc Brakes
Reflective Sidewall
Coffee Cup Holder
Shimano 7 Speed Gear Shift System
MTB-Grade Front Fork
Rear Shock
Technical Specifications
Geometry
-
A – total length70.8‘’ (179.8CM)
-
B – handlebar height48.8‘’ (123.9CM)
-
C – handlebar length29.1‘’ (73.9CM)
-
D – wheelbase47‘’ (119.3CM)
-
E – wheel diameter23.3‘’ (59.1CM)
-
F – minimum seat height31.8‘’ (80.7CM)
-
G – maximum seat height33‘’ (83.8CM)
-
H – chain stay length22.5‘’ (57.1CM)
-
I – frame stack31.9‘’ (81CM)
-
K – effective top tube length29.4‘’ (74.6CM)
-
L – head tube length6.7‘’ (17CM)
-
M – head angle66.8°
-
N – standover height31.8‘’ (80.7CM)
Specification
-
Frame6061 Aluminum
-
HeadsetNeco H114 28.6*44*30
-
ForkKKE R150S coil spring fork compression | Rebound adjustable 140mm travel 15*150mm axle
-
ShockEXA A5-RE 180*47mm
-
Front wheelRim: MD-147 20*4.0"*36H*12G A/V Spoke: 12G 171mm/173mm Hub: MB016F-92-T 15*135MM 12G*36H
-
Rear wheelRim: MD-147 20*4.0"*36H*12G A/V Spoke: 12G 126mm/127mm Hub: 48v 250w Himiway Hub Motor
-
TiresKenda X Himiway 20*4.0
-
BatteryLG 48V 20Ah
-
Motor250W brushless gear motor
-
DisplayHimiway C2 LCD Display
-
ThrottleThumb throttle
-
SensorsTorque sensor丨speed sensor丨brake sensor
-
Crankset44T BCD104 6061-T6 145mm
-
FreewheelShimano MF-TZ500-7 14-28T
-
ChainKMC Z8.3 EPT 130L
-
GroupsetShimano altus M310 7 speed
-
Front brakeTektro hydraulic brake
-
Rear brakeTektro hydraulic brake
-
RotorsTektro TR180-52 F:180mm R:180mm
Components
-
Stem3D forged alloy Ext:40mm
-
HandlebarYC-B086 22.2*31.8*720mm
-
Seatpost/
-
SaddleExtended seat
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range60-80 miles (96-128 KM)
-
Controller48V/22A
-
Charger3.0 A smart charger
-
Rider height5'4"~6'3" (162~190CM)
-
Weight88 lb.
-
Max. system weight330 lb.
Customer Reviews
I have brought this bike with my own money,yes it does 4 mph out of the box in the UK I have not been paid or sponsored to submit a review. The bike can be unlocked anywhere between 0 and 28 ISH for me I have kept it legal for road use and set at 15mph off road I have taken it to 25mph with a smile handles the pot hole's with ease my journey to work is just under 17 miles I can do it just over an hour using one bar on the battery same on the return bit slower in traffic,I have done this with the power off as well just to find out if I could it hurts but it's doable,seat is fine for what I need had a hard tail before this one so suspension is a bit of a bonus was looking at the super 73zx before for the same amount think this has better value,one draw back is lack of mudguard on the front end we really need in the UK, another but no deal breaker is lack of carrying options ruck sacks are ok .
Hi all , bike looks great ,but when fully charged ( took 14 hours) can reach top speeds of under 10 MPH I'm 18 quite thin the bike did struggle to hold my weight and will 100% break if you were to take it of a jump
Very slow I got 7mph and that was down hill . Charging time can be over 6 hours made from very cheap metal,
Bike states it can get up to 20 mph with throttle assistance. This is false can only get up to max of 5mph. Would avoid at all costs.
