Full Suspension
Travel F:90mm R:100mm
-
Torque / Cadence
2 Riding Experiences
-
250W 90Nm
Geared Hub Motor
-
Smart Auto
5 Assist System
-
440 lb.
Payload Capacity
-
20x4.0"
Kenda Fat Tire

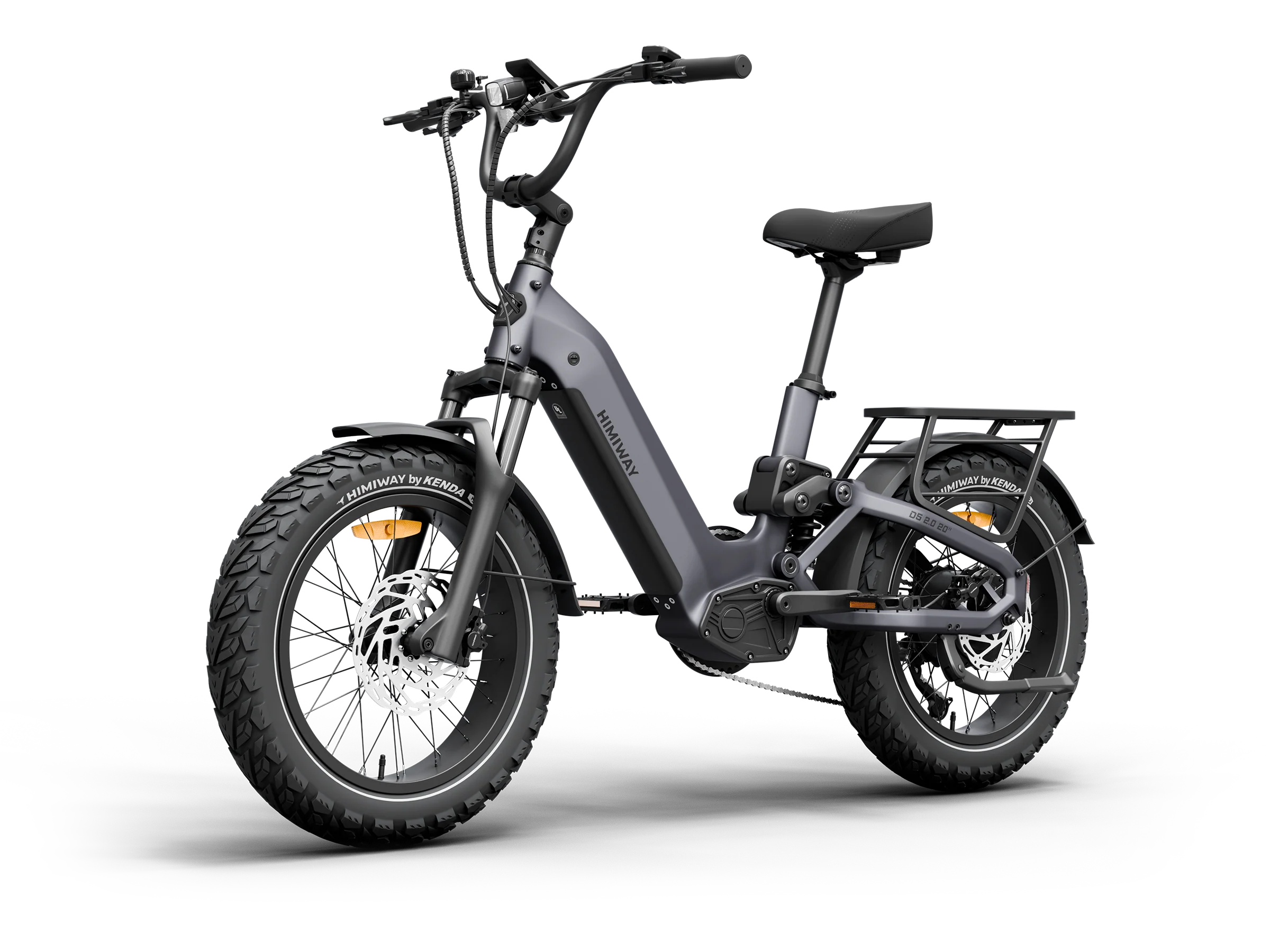

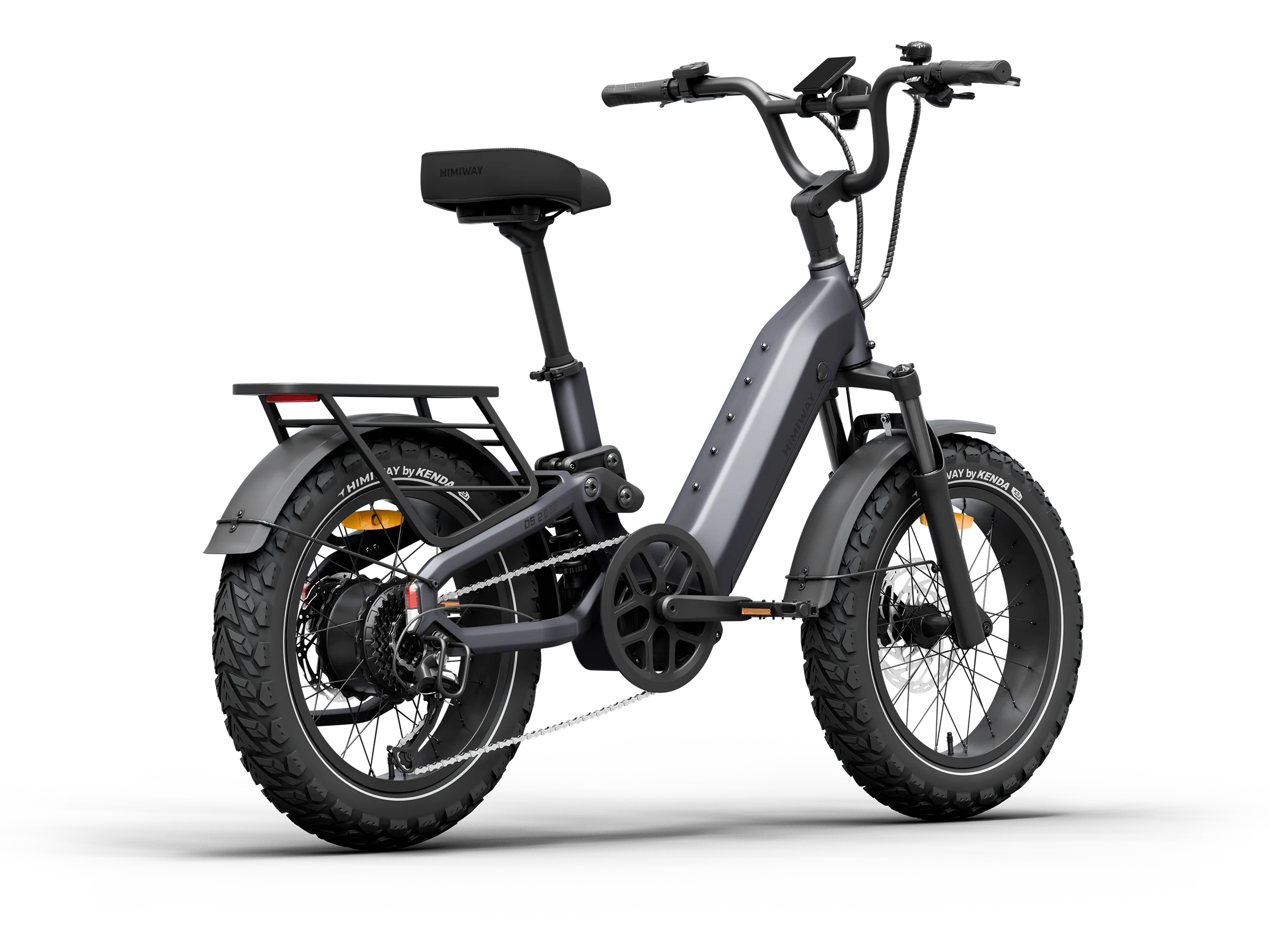

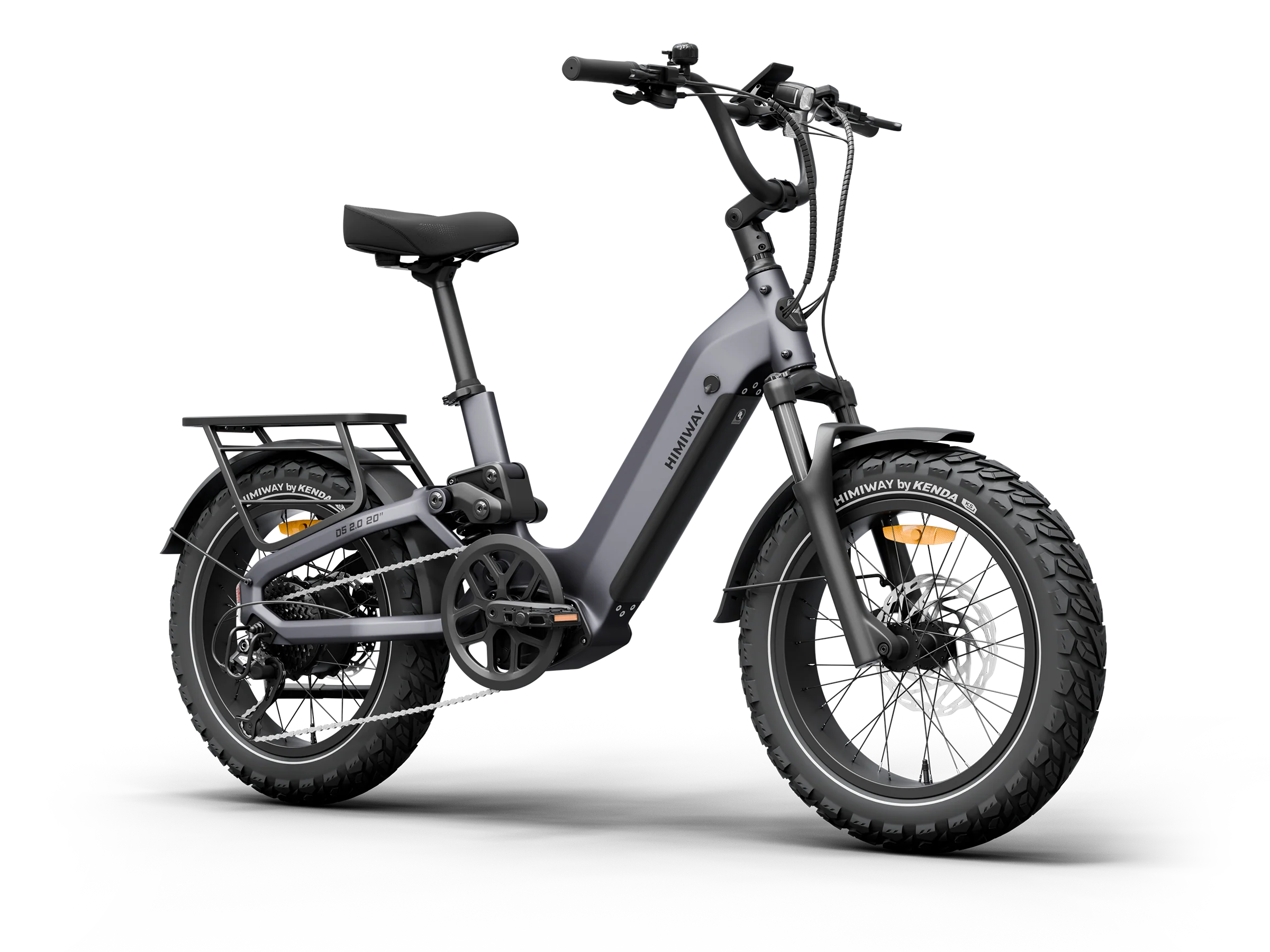

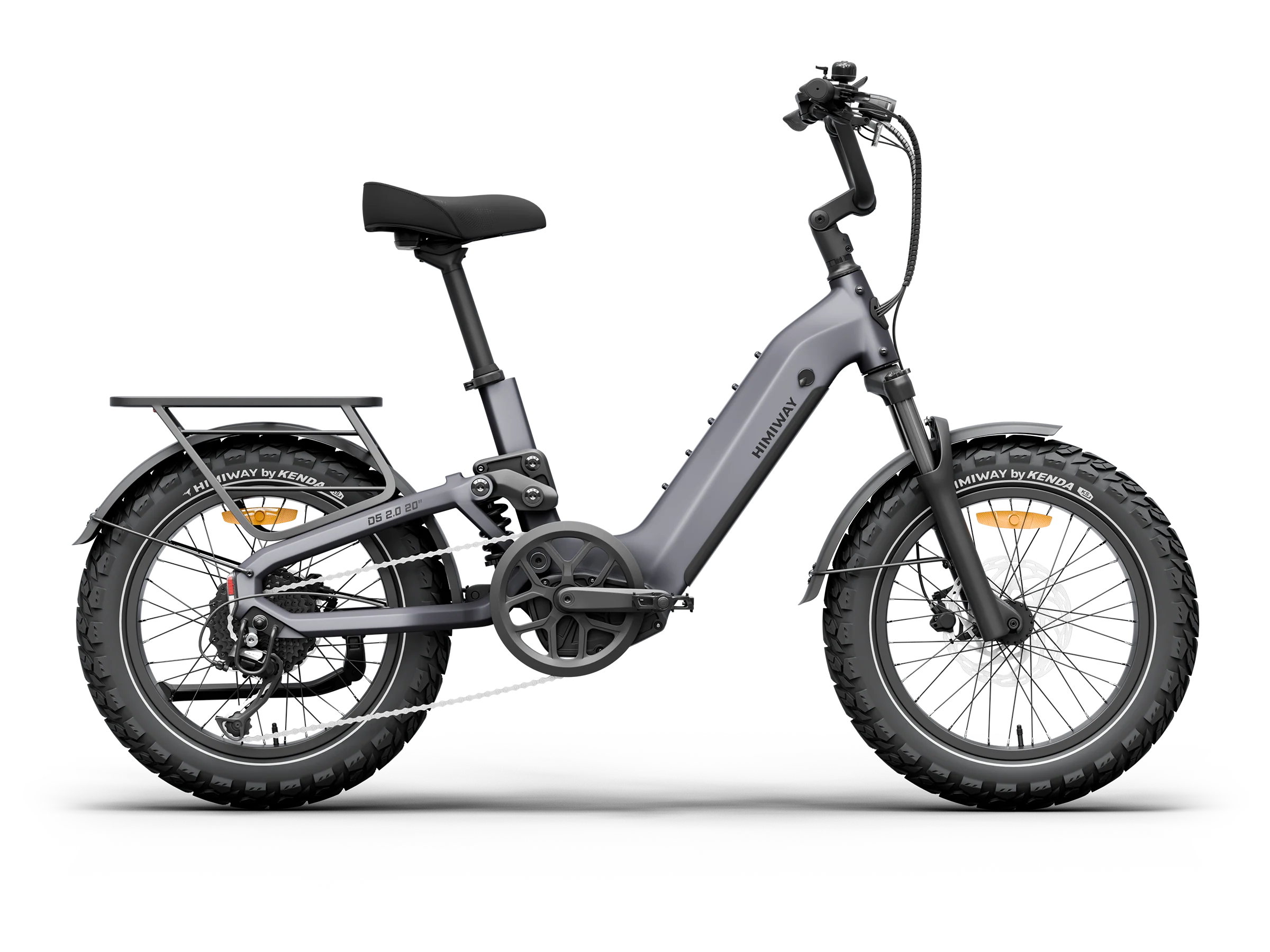

Himiway D5 2.0 20" eBike Easy to Maneuver. Built for Power.
-
Delivery:Jun 12 - Jun 16
Couldn't load pickup availability
Technical Specifications
Geometry
-
A -- total length70 inch
-
B -- handlebar height44 inch (0°)
-
C -- handlebar width28.3 inch
-
D -- wheelbase46.5 inch
-
E -- wheel diameter23.3 inch
-
F -- min seat height30.7 inch
-
G -- seat adjustment height9 inch
-
H -- chain stay length18.9 inch
-
I -- frame stack20.6 inch
-
J -- frame reach16.8 inch
-
K -- effective top tube24.3 inch
-
L -- head tube length5.9 inch
-
M -- head angle68°
-
N -- standover height16.9 inch
Frameset
-
FrameAluminum Alloy, Rear Wheel 100mm Travel
-
ForkHimiway Hydraulic Suspension 90mm Travel with Lock-out
-
Rear shockCoil spring
Electronics
-
Motor48V, 250W, 90Nm
-
Battery48V, 15Ah , IPX6, Certificated by UL 2271
-
CellSamsung/LG 21700 cell, Certificated by UL 2580
-
Charger48V, 3.0A Fast Charger
-
Display3.5" Full color, High brightness, Bluetooth, Adjustable angle
-
SensorTorque / Cadence Switchable
-
ThrottleErgonomic Thumb Throttle
-
Pedal assistAuto Pedal Assistant + 5 PAS Levels
-
Walk mode1.9~3.7 MPH
-
Front light120 Lux high-output integrated LED, adjustable angle
-
Rear lightBraking Indicator, turn signal, rear light steady/flash, integrated with the frame
-
Waterproof ratingIPX5 (whole bike), IPX6 (battery)
Speed & Range
-
Max speed (default)25 km/h (EU Version)
-
Max speed adjustable range6~25 km/h (EU Version)
-
Throttle range40 Miles
-
Pedal assist range70 Miles
Drivetrain
-
Chainrings52T, narrow wide chainring
-
CranksetAluminum Alloy, 170mm
-
Freewheel8-speed, 11-34T
-
Rear derailleurSHIMANO 8-speed
-
Shift leverSHIMANO 8-speed
-
Chain8-speed
Brake
-
BrakeTektro Hydraulic Disc Brake
-
Rotors203mm Front/180mm Rear
-
Brake leversAluminum Alloy, with power cutoff
Wheel
-
RimsAluminum alloy
-
Front hubAluminum alloy, Anti-Theft Quick Release
-
Tire20×4.0 Kenda×Himiway, K-Shield Punch-Resistant, Reflective Sidewalls
Cockpit
-
HandlebarAluminum Alloy, Φ31.8mm, 720mmhandlebar
-
GripsDurable ergonomic grips, lockable
-
Stem0-60° Adjustable, Aluminum Alloy, Φ31.8mm, 60mmstem
-
SaddleMemory Foam comfort ergonomic seat
-
SeatpostAluminum Alloy, Φ33.9mm
-
ClampAluminum Alloy, quick release
Supports
-
FendersPlastic, front and rear full coverage
-
Rear rackMIK HD Compatible Alloy
-
PedalsAluminum alloy
-
KickstandAluminum Alloy, included, rear mount
Weight & Load
-
Bike weight80lbs
-
Bike load capacity440lbs
-
Rear rack load capacity120lbs
-
Full Suspension
Travel F:90mm R:100mm
-
Torque / Cadence
2 Riding Experiences
-
250W 90Nm
Geared Hub Motor
-
Smart Auto
5 Assist System
-
440 lb.
Payload Capacity
-
20x4.0"
Kenda Fat Tire
Easy to Maneuver.
Built for Power.

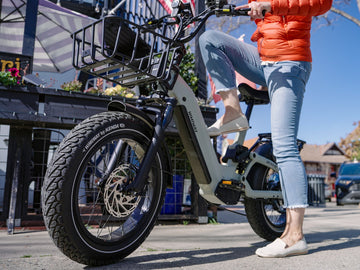

Easy to Maneuver
Stable. Easy to control. Confidence at every stop.
With a 17" standover height, compact 20" wheels, and a lower center of gravity than most fat tire bikes, you feel balanced the moment you hop on.
Ride steady. Ride easy. Head out on your own terms.
-
17"
Low Standover -
20"
Compact Wheels
Glance. Adjust. Ride.
Simple controls keep your focus where it belongs — on the road.
A bright color display shows speed and battery at a glance, while thumb-reach buttons let you adjust power without looking down.
Less fiddling. More riding.
-
LCD
Color Display -
Thumb
Easy Control
MIK Rear Rack
Swap gear in seconds. The universal MIK mount locks down panniers, cargo boxes, pet carriers, or child seats securely—so you’re ready to roll at a moment’s notice.
-
1000+
Accessories Available -
One Click
Switch Accessories

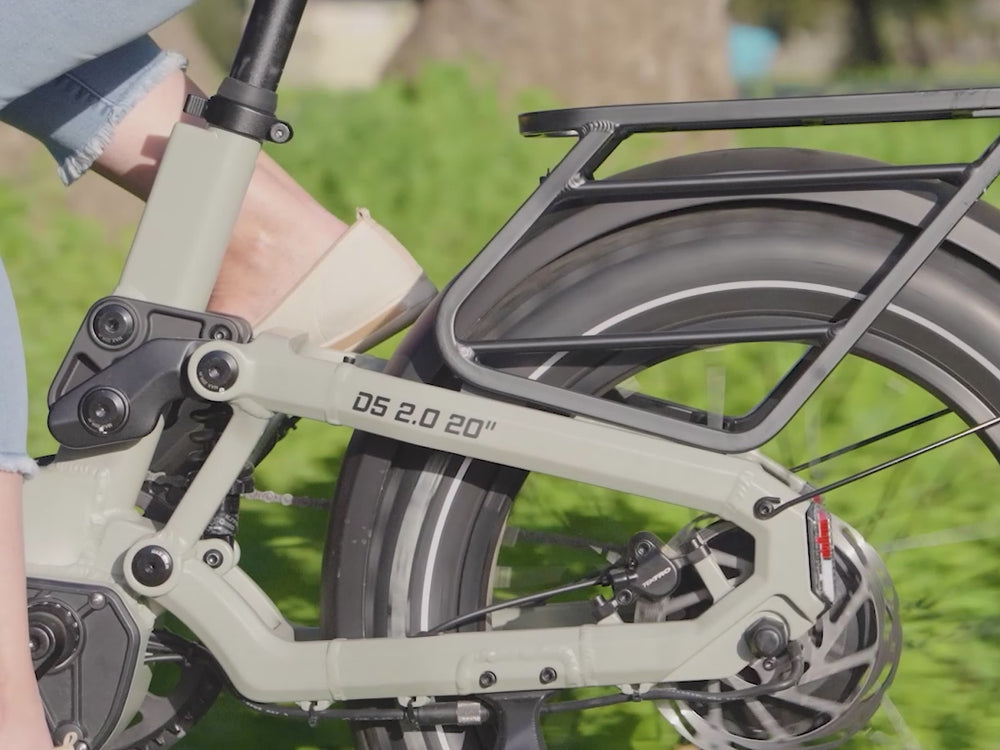

Ride Smooth. Stay Comfortable.
A smoother ride, wherever the road takes you.
Full suspension absorbs gravel, roots, and ruts before you even notice them, keeping the ride soft and controlled. Whether it’s a trail through the state park or a bumpy shortcut to the grocery store, comfort stays with you.
Compact 20" wheelsadd agility on tight turns and uneven paths, so you can go where you want — and stay comfortable getting there.
-
90mm
Fork Travel -
100mm
Rear Travel
Still Good at Mile Ten
Ride longer without the aches and strain.

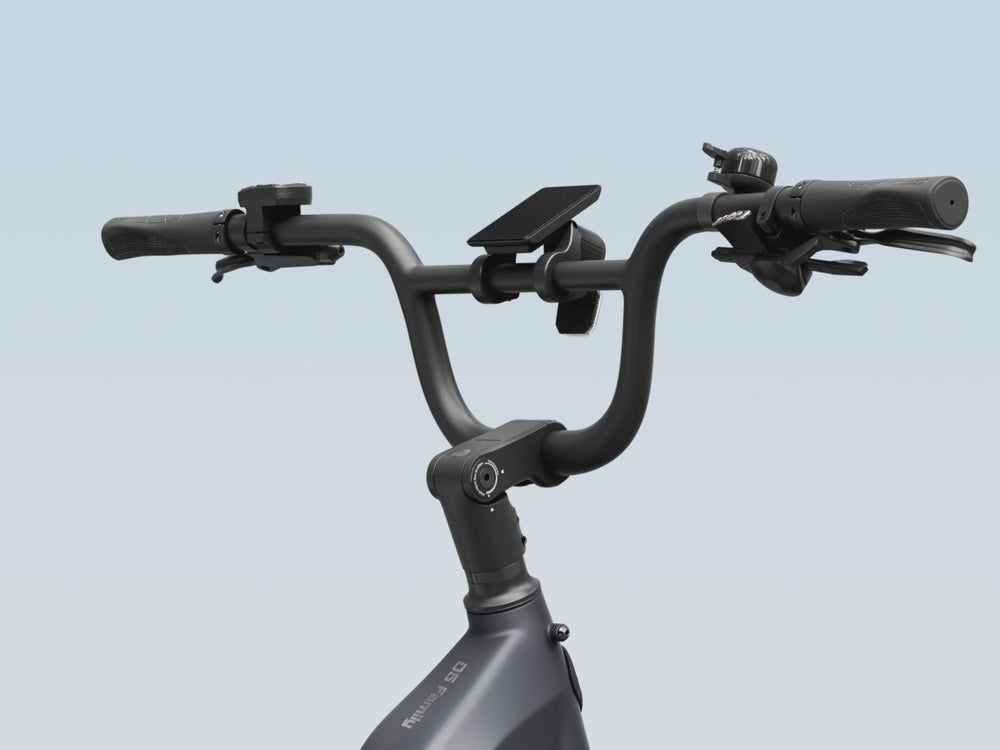

An adjustable stem lets you fine-tune handlebar height and angle to match your posture — upright, relaxed, and easy on your shoulders and wrists.
Whether it’s a quick loop around the neighborhood or a slow cruise through the state park, you’ll still feel good when you get home.
-
60°
Adjustable
Stay Out Longer
Comfort that lasts beyond the first mile.
A wide memory-foam saddle distributes weight evenly and helps absorb bumps along the way, so rides stay comfortable at 30 minutes, 60 minutes, and beyond.
No rush. Just ride — and head home when you’re ready.
-
260mm
Wide Saddle
Just Pedal. It Adjusts.
No shifting. No guesswork.
In Auto mode, the bike adds more support on hills and eases off on flat roads — all without you having to think about it.
Prefer more control? Switch to Manual and choose from 5 assist levels.
Your ride. Your way.
-
5 Level
Assist System -
Auto Mode
Real-Time Assist
Two Riding Experiences. One Button.
Choose how your bike responds to you:
Torque Mode – Instant power for when you need extra speed or tackle hills.
Cadence Mode – Smooth, steady assist for effortless, comfortable rides.
Switch anytime with a long-press of M—no stopping required. Enjoy complete control, every ride.
-
Torque
Instant Power -
Cadence
Steady Rhythm
Your Bike. Your Settings.
Adjust until it feels just right:
Power Level— Choose your boost.
Speed Limit — Set your pace.
Assist Response— Smooth or instant, your call.
Once set, the bike remembers.
Your comfort. Your ride. Your way.
-
Custom
Power Level -
Speed
Adjustable
Technical Specifications
Geometry
-
A -- total length70 inch
-
B -- handlebar height44 inch (0°)
-
C -- handlebar width28.3 inch
-
D -- wheelbase46.5 inch
-
E -- wheel diameter23.3 inch
-
F -- min seat height30.7 inch
-
G -- seat adjustment height9 inch
-
H -- chain stay length18.9 inch
-
I -- frame stack20.6 inch
-
J -- frame reach16.8 inch
-
K -- effective top tube24.3 inch
-
L -- head tube length5.9 inch
-
M -- head angle68°
-
N -- standover height16.9 inch
Frameset
-
FrameAluminum Alloy, Rear Wheel 100mm Travel
-
ForkHimiway Hydraulic Suspension 90mm Travel with Lock-out
-
Rear shockCoil spring
Electronics
-
Motor48V, 250W, 90Nm
-
Battery48V, 15Ah , IPX6, Certificated by UL 2271
-
CellSamsung/LG 21700 cell, Certificated by UL 2580
-
Charger48V, 3.0A Fast Charger
-
Display3.5" Full color, High brightness, Bluetooth, Adjustable angle
-
SensorTorque / Cadence Switchable
-
ThrottleErgonomic Thumb Throttle
-
Pedal assistAuto Pedal Assistant + 5 PAS Levels
-
Walk mode1.9~3.7 MPH
-
Front light120 Lux high-output integrated LED, adjustable angle
-
Rear lightBraking Indicator, turn signal, rear light steady/flash, integrated with the frame
-
Waterproof ratingIPX5 (whole bike), IPX6 (battery)
Speed & Range
-
Max speed (default)25 km/h (EU Version)
-
Max speed adjustable range6~25 km/h (EU Version)
-
Throttle range40 Miles
-
Pedal assist range70 Miles
Drivetrain
-
Chainrings52T, narrow wide chainring
-
CranksetAluminum Alloy, 170mm
-
Freewheel8-speed, 11-34T
-
Rear derailleurSHIMANO 8-speed
-
Shift leverSHIMANO 8-speed
-
Chain8-speed
Brake
-
BrakeTektro Hydraulic Disc Brake
-
Rotors203mm Front/180mm Rear
-
Brake leversAluminum Alloy, with power cutoff
Wheel
-
RimsAluminum alloy
-
Front hubAluminum alloy, Anti-Theft Quick Release
-
Tire20×4.0 Kenda×Himiway, K-Shield Punch-Resistant, Reflective Sidewalls
Cockpit
-
HandlebarAluminum Alloy, Φ31.8mm, 720mmhandlebar
-
GripsDurable ergonomic grips, lockable
-
Stem0-60° Adjustable, Aluminum Alloy, Φ31.8mm, 60mmstem
-
SaddleMemory Foam comfort ergonomic seat
-
SeatpostAluminum Alloy, Φ33.9mm
-
ClampAluminum Alloy, quick release
Supports
-
FendersPlastic, front and rear full coverage
-
Rear rackMIK HD Compatible Alloy
-
PedalsAluminum alloy
-
KickstandAluminum Alloy, included, rear mount
Weight & Load
-
Bike weight80lbs
-
Bike load capacity440lbs
-
Rear rack load capacity120lbs
